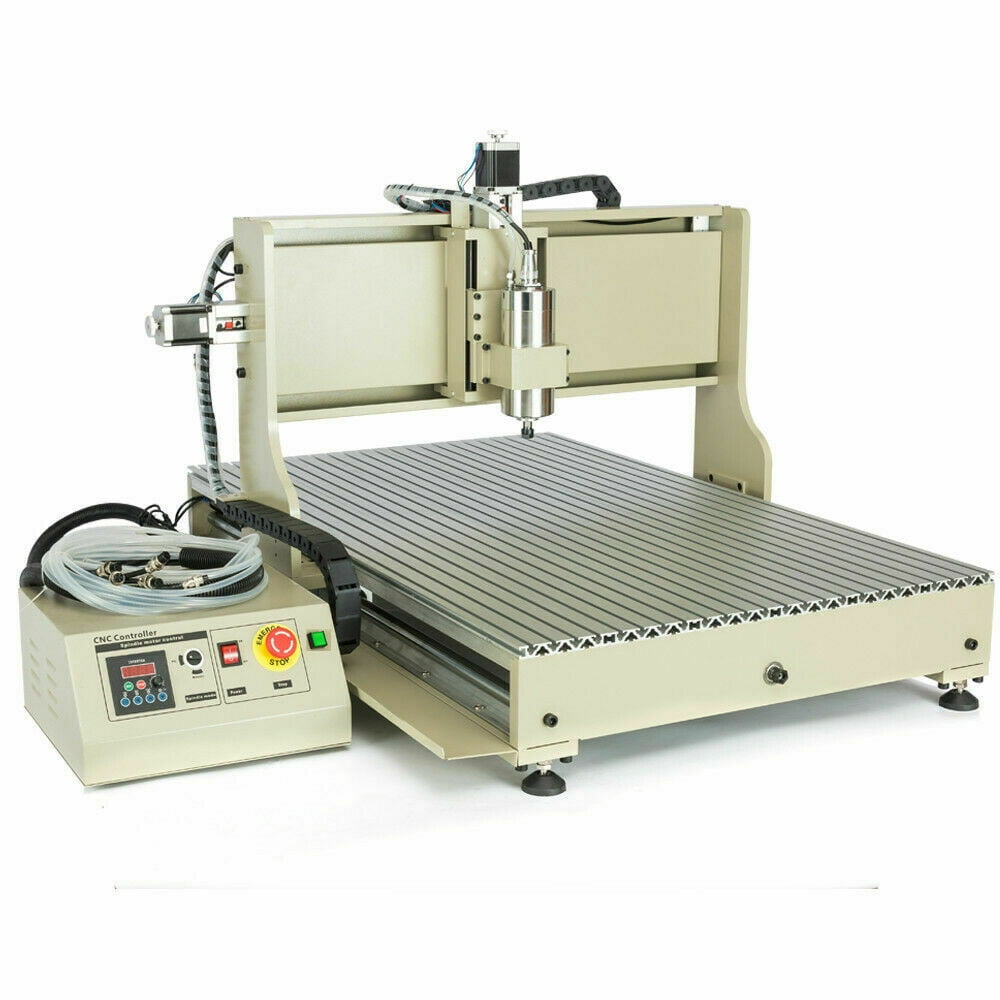

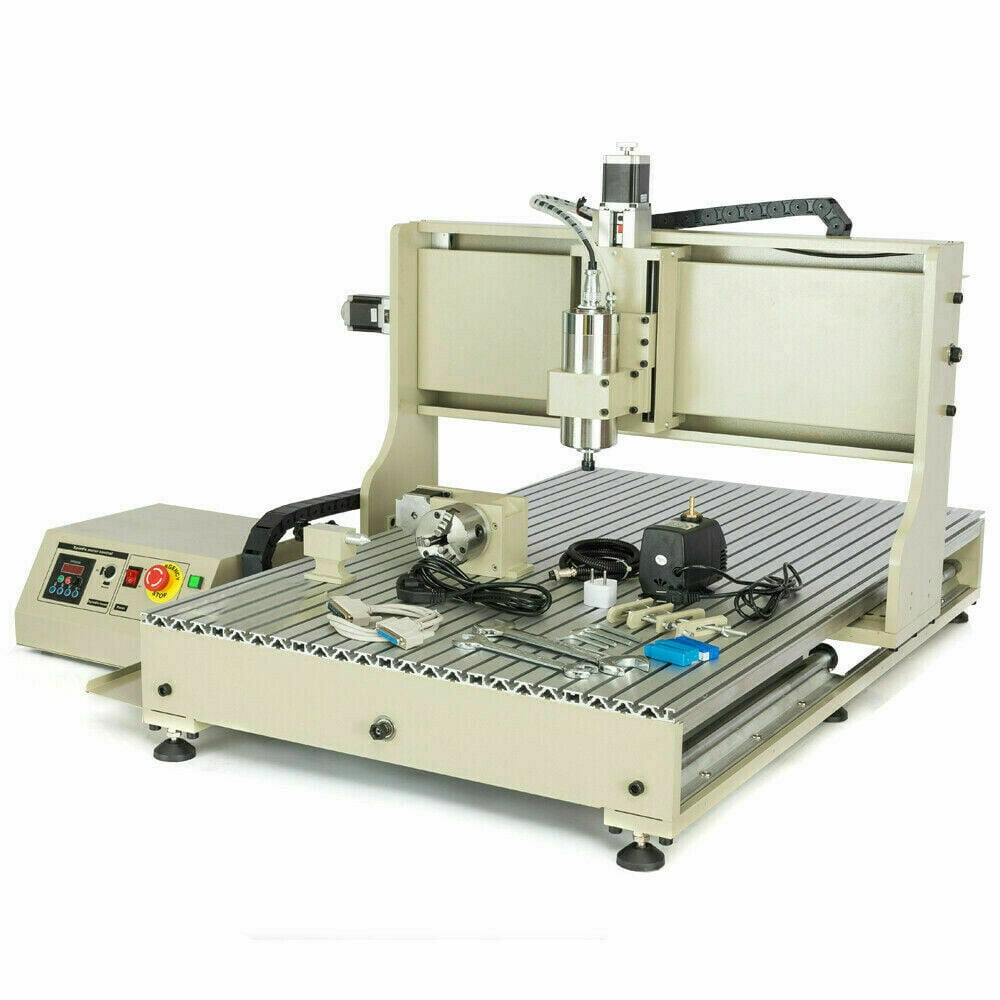

USB 1.5KW 4Axis 6090 CNC Router 3D Engraver Engraving Ball Screws Machine VFD CE

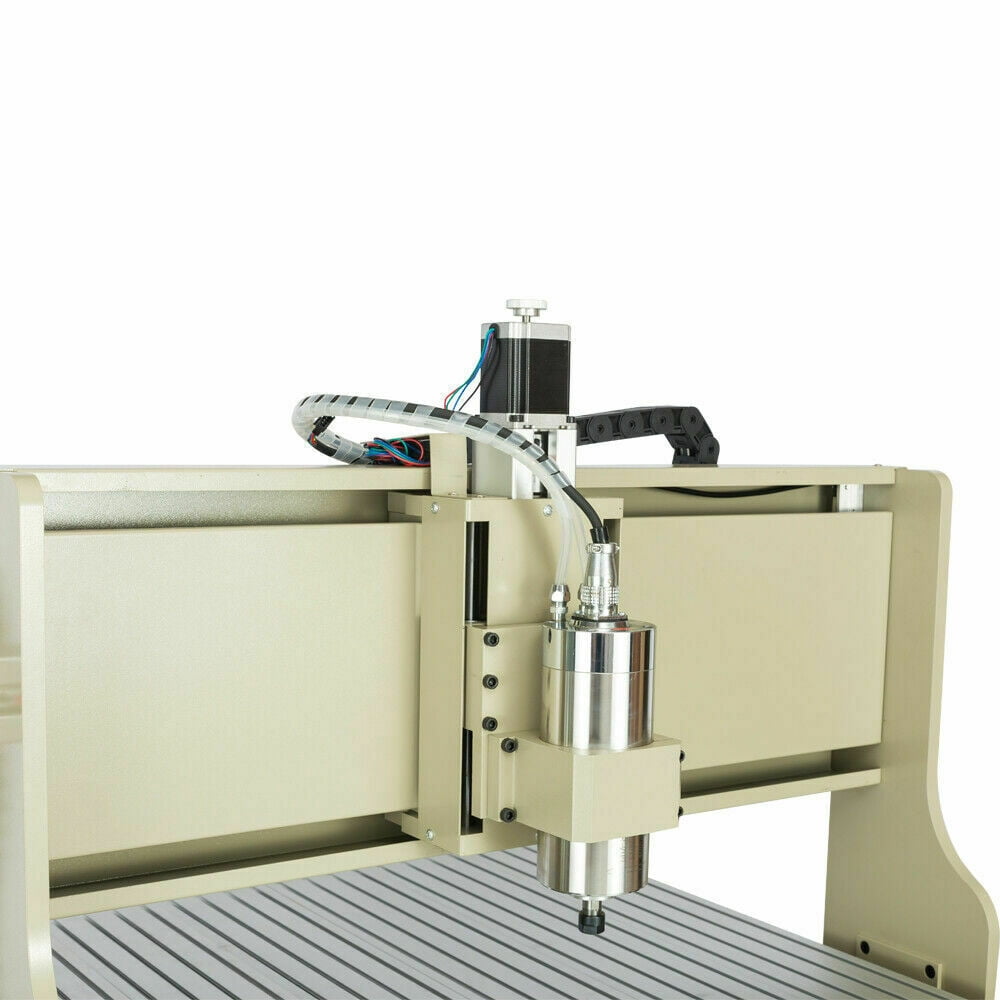

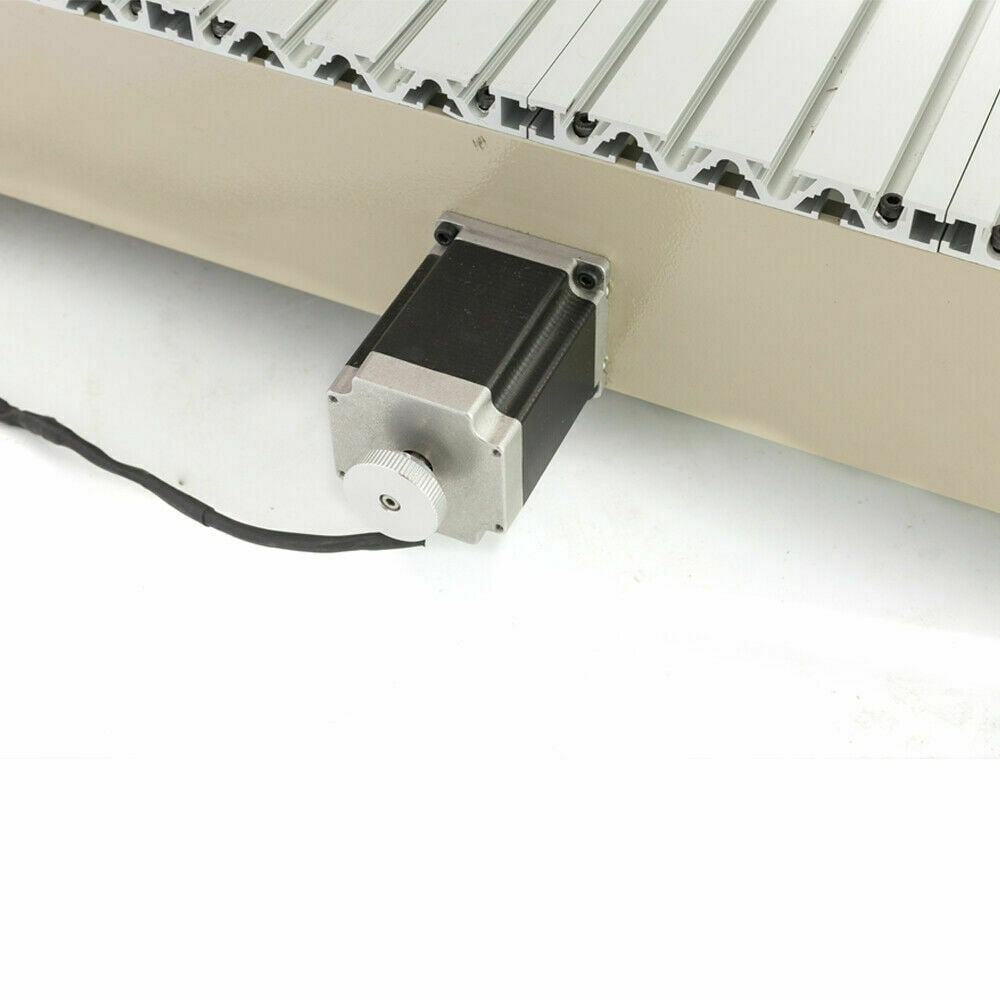

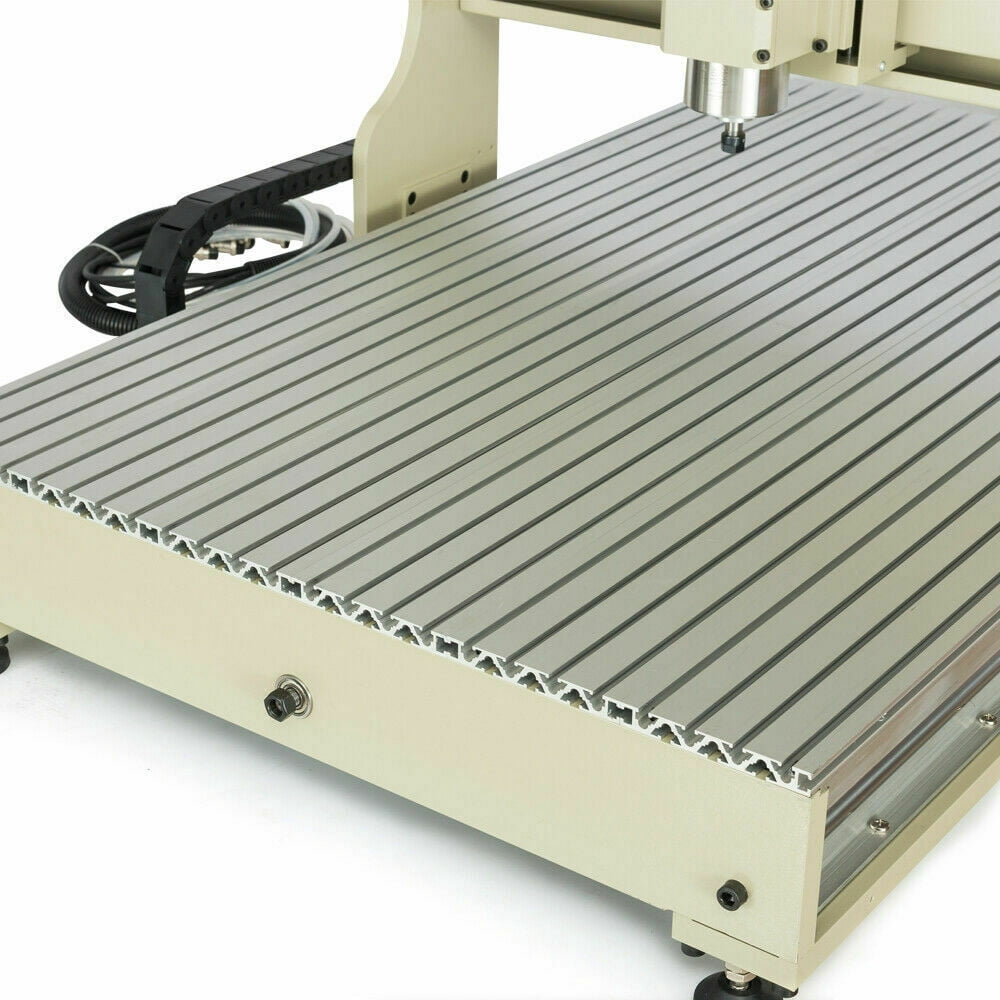

<p><i><b>Description:</b></i><br>USB 1.5KW 4Axis 6090 CNC Router 3D Engraver Engraving Ball Screws Machine VFD CE<br>4 Axis USB 1500W CNC Router Engraving Machine Engraver For Wood Acrylic 6090 Ball Screw</p> <p><i><b>CNC Router engraving machine parameters:</b></i><br>Model: CNC6090GZ<br>Outside dimension: 1150*970*650mm(L*W*H)<br>Working platform size: 1045*720mm(L*W)<br>Frame Material：The whole machine used 6061 aluminum profiles<br>Max. Feeding height: ≤140mm(From base of Z axis to platform)<br>X,Y,Z Working Area: 900(Y)*600(X)*140mm(Z)<br><i><b>Sliding unit:</b></i><br>X axis:SFU1605 Ball Screws<br>Y axis:SFU1605 Ball Screws<br>Z axis:SFU1204 Ball Screws</p> <p><b><i>Drive unit:</i></b><br>X axis: ø20 High intensity round rail,<br>Y axis: SBRø20 high-strength aluminum base rails<br>Z axis: ø12 high-strength round rail<br>Stepping motor: 57 two-phase 3A (with handwheels)<br>Driving Power for Stepping motor: AC110, 240W, out put: DC24V, 10A<br>Maximum Idle speed: 1500mm/min<br>Working Speed: 50-1500mm / min (different material with different speed settings)<br>Spindle motor: 1500W high-speed variable frequency spindle motor , ER11 chuck, with 6mm collet.<br>(tips：1. The spindle motor must connect with the VFD. 2. It cannot directly connect with the supply voltage (AC110V).<br>3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)<br>1. Water cooled spindle motor can work longer time than air cooled motor.<br>2. Water cooled spindle motor has higher stability and better concentricity than air cooled motor.<br>Drive of Stepping motor: 0-3.5A adjustable four-axis drive(TB6560AHQ chip, 24V power supply, 2,4,8,16 subdivision can be set, factory settings 8 subdivision)<br>Repositioning precision: ≤0.05mm<br>Cooling: Water-cooling<br>Speed: 0-24000r/m<br>Spindle precision: Radial runout ≤ 0.03mm<br>Carving command: G code / TAB file / nc file / NCC file<br>VFD: AC110V, 1500W, 0-400Hz (built-in control box)<br>&nbsp;<br>USB Control box parameters<br>Protection: Emergency stop button<br>Communication interface: through USB PORT connect with computer<br>Software environment: Windows XP / win7 with 32 bit (proper computer system makes the software run, otherwise it will not work)<br>Input Volts: AC110V<br><i><b>Tips:</b></i><br>The software perform better on the Windows XP/Windows 7 and 32 bites system computer, it will not work on Win 8/10 and 64 bites system computer.<br>Please close the firewall and antivirus software on the computer before DOWNLOAD AND install the software.(This is very important)<br>Otherwise, the antivirus will regards the CNC software is virus and stop the installation.<br>PS:<br>Please don't update the software when installed, then it will not need the license Numbers.<br>Free Version means---Free version does not have the copyright but the function is same with the genuine version.<br><i><b></b></i><br><i><b>Package Include:</b></i><br>1 * Remote controller<br>1 * Cable</p>

• • The NEW 1.5KW water-cooled VFD is available operating for long time, which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.water cooling spindle works more stable and durable.
• • High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle.

• • For Woodworking industry: sculpture, round carving, wooden handicraft processing;Advertising industry: advertising signs, logo making, cutting acrylic, plastic molding, suit for making a variety of materials advertising decorative products
• • Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
